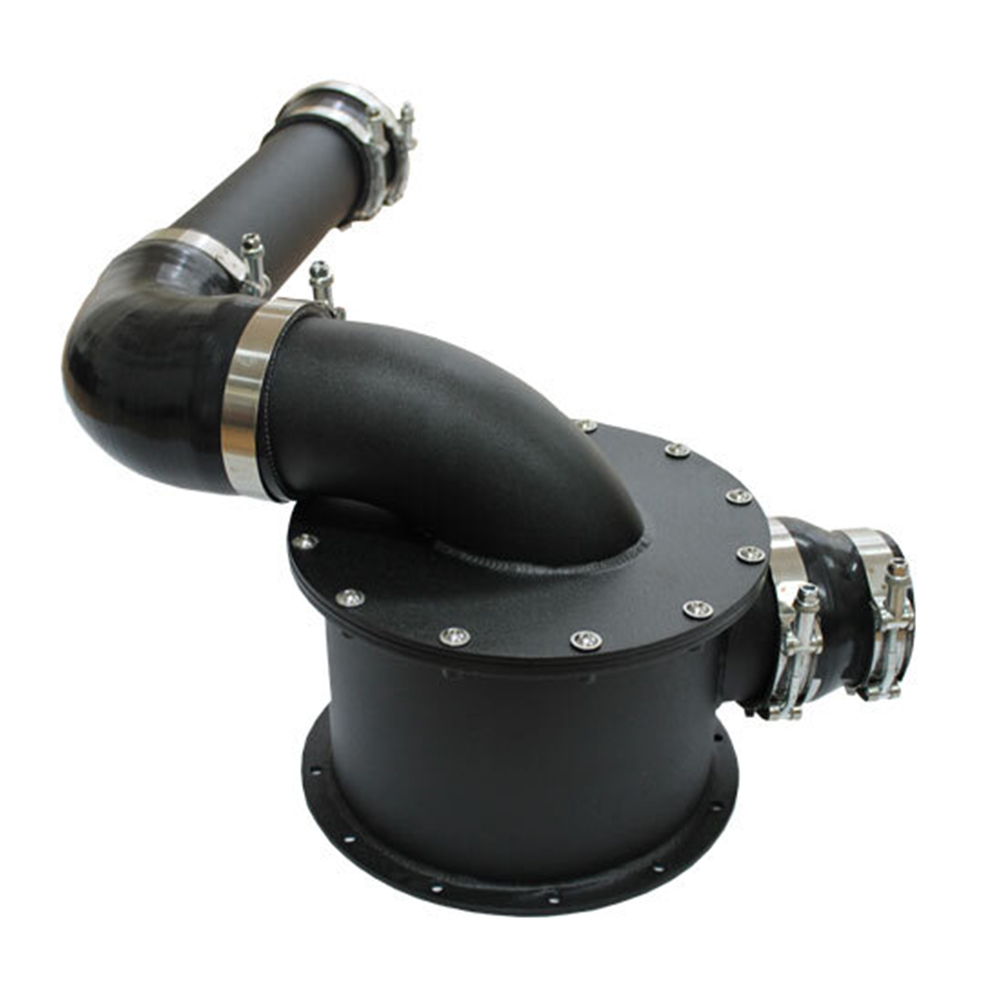

Black Finish Air Box Filter Kit

Dimensions:

• Diameter : 24cm

• Inlet / Outlet : 90mm

• Base Top: 23cm

• Box Height: 15cm

• Box Height With Pipe: 24cm


Product Features:

• The ADS Filter element is manufactured by using a 6 layer cotton technology
• Cotton used in this filter is engineered to exceed stringent requirements for performance filtration
• Inlet and outlet sizing is 3.5inches (89MM)
• Filter box has been constructed with lightweight aluminum material
• Increases the effectiveness of the filter system and will remove contaminants
• Top plate can be rotated to suit multiple directions therefore suitable for all different custom 4×4 air filtering applications
• when removing or refitting the top plate of the filter do so that a side to side cross-action is used to lose or tightening the bolts
• Air filter element can be washed in warm water, rinsed well, let to dry and refit to the air box
• One-way drainage valve system has been added to the air box
• ADS1 filter element is Interchangeable With filters:
- Nissan 16546-VB300
- Ryco A1412
- Sakura FA1855
- Donaldson P902298
- Wesfil WA1033
- Fleetguard AF27734
- Repco RAF126

Fitment Guide:

• Due to the many snorkel styles and positioning of turbocharges, fuel injection and or diesel air input, we have supplied 2 x silicone straight joiners, 1 x 90 degree silicone elbow and 1 x 30cm long aluminum pipe to cater for most fitment applications. If extra piping or silicone is required, must be purchased separately
• The kit is supplied with two universal brackets which can be used in most cases to attach the air box to the vehicle, by using the unique multi mounting holes system of the air box. Note and carefully plan the position of the air box under the bonnet as this is of importance
• Plan correctly where the holes are to be drilled in order to mount the filter box to the vehicle, ensuring the inlet of the filter is pointing in the correct direction of air intake of your vehicle. The mounting holes on the air box will allow it to be placed in almost any position in the engine compartment
• Also enclosed with the kit are two brackets suitable for Y60 and Y61 Nissan engine compartment. See Indication below of positioning the air box to engine compartment. The higher of the two brackets* is to be attached to the air box with the provided bolts and nuts. The higher bracket is multi drilled for under bonnet fitments preference. Select preferred drilled bracket position “Photo A shows” bracket as it should be positioned to the filter box at the back of the head light”
• The lower bracket should be attached to the opposite side of the higher bracket. This bracket can also be fitted upside down if it suits your application better. “See Photo B”
• Higher Bracket with rubber mounting blocks. Photo: A
• Note: When fitting the air box to the Nissan Y60/61, 3x7mm holes need to be drilled behind the passenger side head light in order to mount the air box. Ensure the holes to be drilled are in the correct position. Due to the several applications and positions that the air box can be fitted, we ask to plan the drilling points carefully. Ensure the inlet of the air box points towards the guard opening using the appropriate silicone joiner to attach to your snorkel application. Note: Some modification to the guard snorkel opening is needed. The top of the air box can swivel to the desired position. 3 x Rubber mounting blocks are supplied and they should be fitted under the brackets to prevent vibration to the air box


Suits:

• Universal Fitment
• Nissan Patrol
- Y60
- Y61
• Nissan Navara D40

NB: MAF Sensor (Not supplied with kit) - If your model has a MAF sensor on your factory intake you must install and adapt your MAF sensor to our intake system.

PLEASE NOTE - MODIFICATIONS MAY BE REQUIRED:
Due to the several applications and positions that the air box can be fitted, some vehicles may require minor or major modifications to install into the engine bay - if you have any questions prior to, or after purchase, please do not hesitate in contacting us with any questions you may have - we are always available to answer any questions you may have.

SKU ADS3_001
Brand Autotecnica
Shipping Weight 3.9500kg
Shipping Width 0.360m
Shipping Height 0.270m
Shipping Length 0.300m
Shipping Cubic 0.029160000m3
Unit Of Measure ea
