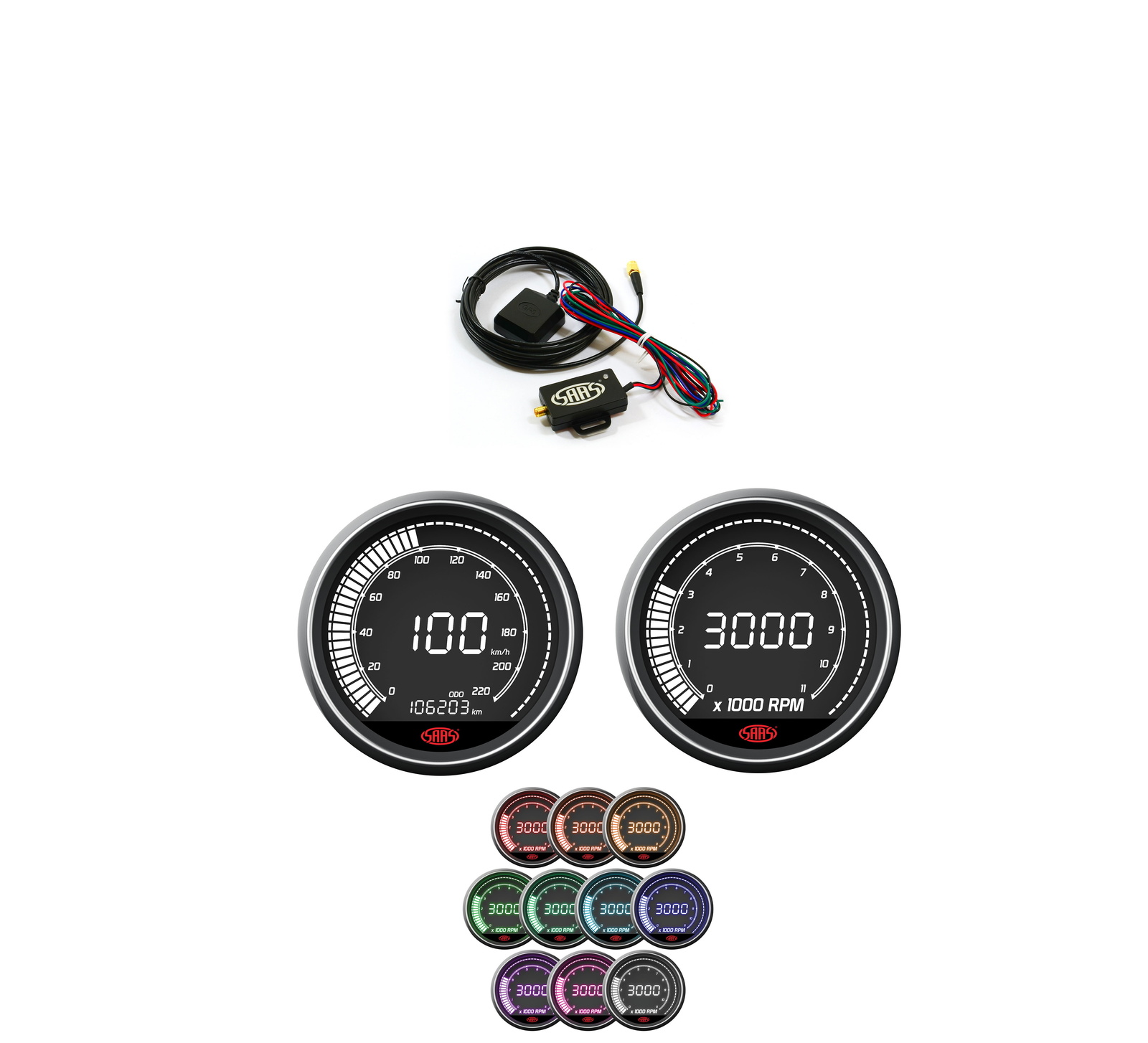

SG41263 Speedometer 220 KPH 3 1/2" 89mm In Dash Muscle Digital Series

NOW FEATURING DIMMABLE BACKLIGHTING

Presenting the latest in SAAS Muscle Series Digital Gauges - full featured 0-220 KPH Digital Speedometer designed for in-dash installation. The new for 2022 SAAS Muscle Digital Series gauges give you digital readings with the added advantage of dimmable backlighting. No moving components allows for a vibration proof environment making these gauges ideal for 4WD, offroad and performance applications.

FEATURES:

  • 80mm Body OD / 89mm Bezel OD
  • Separate TRIP (A) and TRIP (B) Odometer
  • Maximum (Peak) Speed Recall
  • Built-In Adjustable Speed Alert
  • Read Speed in either KPH or MPH
  • Transfer your vehicle's original odometer reading onto the digital display
  • Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable driven speedometers).
  • OLED Multifunction Display window shows all user functions and setup functions
  • Advanced 10 Colour LED Lighting with 5 levels of dimming for day and night mode (accessed via a remote switch)

Includes
SG41264 Tachometer 0-11K Shiftlite 3 1/2" 89mm In Dash Muscle Digital Series

Presenting the latest in SAAS Muscle Digital Series Gauges - our full featured 0-11000 RPM Digital Tachometer designed for in-dash installation.

The new for 2022 SAAS Muscle Digital Series gauges give you digital readings with the added advantage of dimmable backlighting.

No moving components allows for a vibration proof environment making these gauges ideal for 4WD, offroad and performance applications

FEATURES:

80mm Body OD / 89mm Bezel OD
Maximum (Peak) RPM Recall - see your max RPM then clear the data at the touch of a button
Built-In Pre-Shift Light Warning will illuminate when a pre-set RPM is reached
Main Shift Light Indicator will illuminate AND sound a warning tone will sound when a pre-set RPM is reached
Compatible with 99.9% of petrol engines. We have you covered with a choice of 1 to 9 cylinders for single or multi-coil engines. NO tach adaptor required!
CAN-BUS Compatibility. VE Commodore and FG Falcon owners rejoice!
OLED Multifunction Display window shows all user functions and setup functions
Advanced 10 Colour LED Lighting with 5 levels of dimming for day and night modes.

Includes
SG31650 Speedometer GPS Sensor and Antenna

The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse) where there is the absence of a traditional VSS.

If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration free unit which uses data received from the Global Positioning Satellite network. It calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy. You may need to check with your local authorities regarding using a GPS signal source as a sole source for speed.

FEATURES:

Direct match to our SG41263/SG31631/SG31632 in-dash speedometers
Super fast and easy install (when mated to SAAS Speedometers)
High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)

Velocity < 0.06m/sec (~ 0.22 kph)
Altitude to within 10m
Horizontal to within 5m

Anti GPS Drift technology
Shockproof and circuit protected
Pulse compensation for when driving through tunnels (5000 pulses per km)
Low current draw
Fast satellite acquisition time

First time setup < 60sec
Temporary power loss < 13 sec
Loss of satellite lock < 2sec

CABLE ASSIGNMENT:

RED: Power + DC8~32V (may require resistor in higher V installs)
BLACK: Ground/Earth
GREEN: Speed Pulse Signal +'ve output
BLUE: Speed Pulse Signal -'ve output
