SSH4403 For Nissan Navara D40 Pathfinder R51 V9X V6 01/2010 on Silicone Intercooler Cold Side 3rd Stage

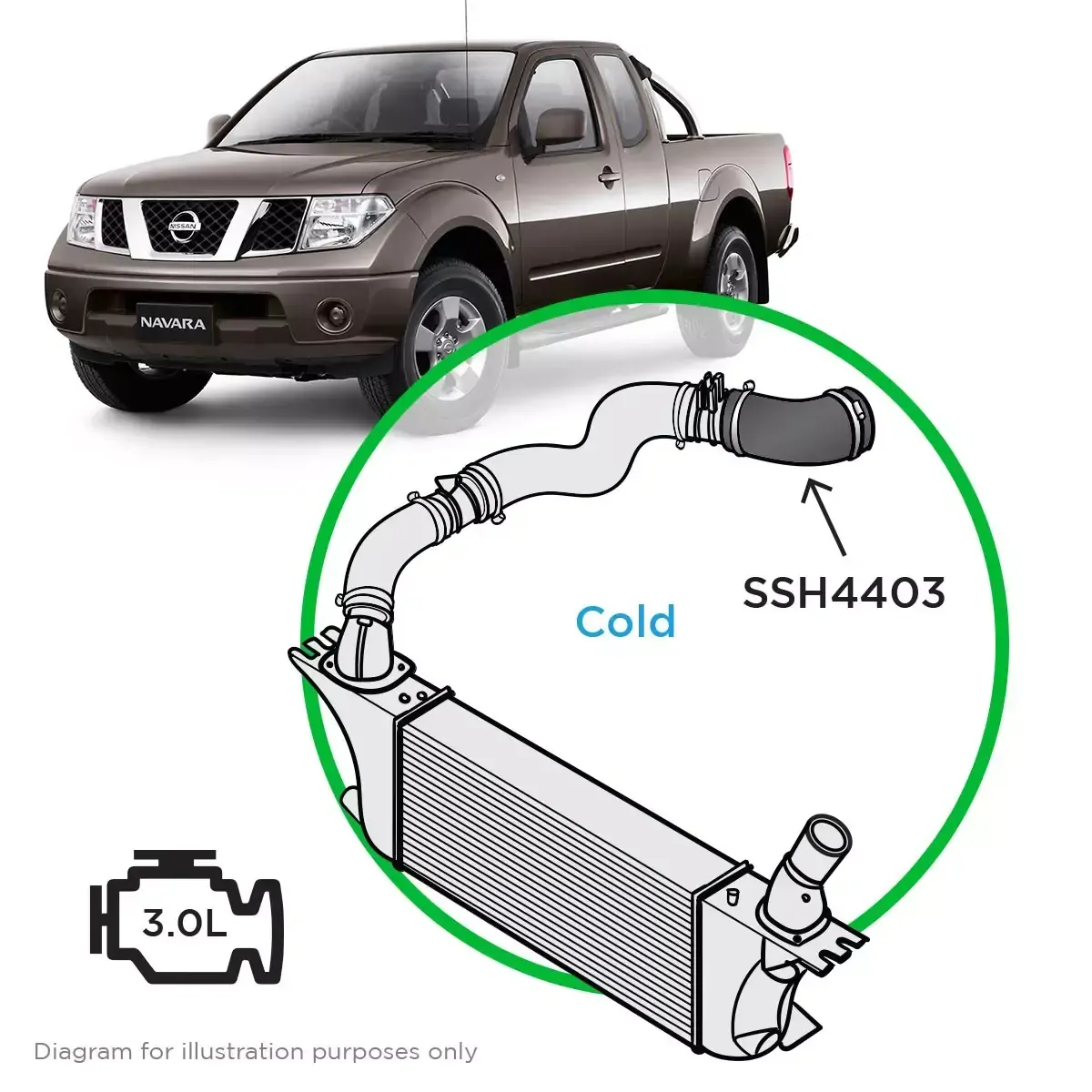

The SAAS SSH4403 Intercooler hose is an upgrade pipe to the OE rubber hose that connects directly to the (RHD) driver's side throttle body. It is the final stage of the 3 hoses that form the cold side intercooler to throttle body assembly.

Designed to replace the factory cold side to throttle body hose pipe - 144635X22C - with an upgraded flurosilicone coated silicone hose. Our multi-ply hose kits are supplied with stainless dual bead hose clamps and provide a secure solution and reduce the possibility of hose failure. Leaking, swollen or split intercooler hoses can lead to a loss of power and/or ingestion of unfiltered air

FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry

Fitting Notes:

SAAS Silicone Intercooler Hoses are designed to be more robust than the OE style of rubber hose. The multi-ply design may require warming to fit over pipe flanges and should be installed with the provided hose clamps to ensure a secure seal.



• Smooth Form 5 Ply polyester reinforced silicone moulded to factory shape
• ID 1: 66mm
• ID 2: 69mm
• Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products
• Stable operating temp from -50°C to +200°C
• 4:1 burst pressures at safe working loads
• Black finish to retain that OE look
• Stainless Dual Bead Hose Clamps included
